1800doorbell

C4-PW Formal Wired Doorbell

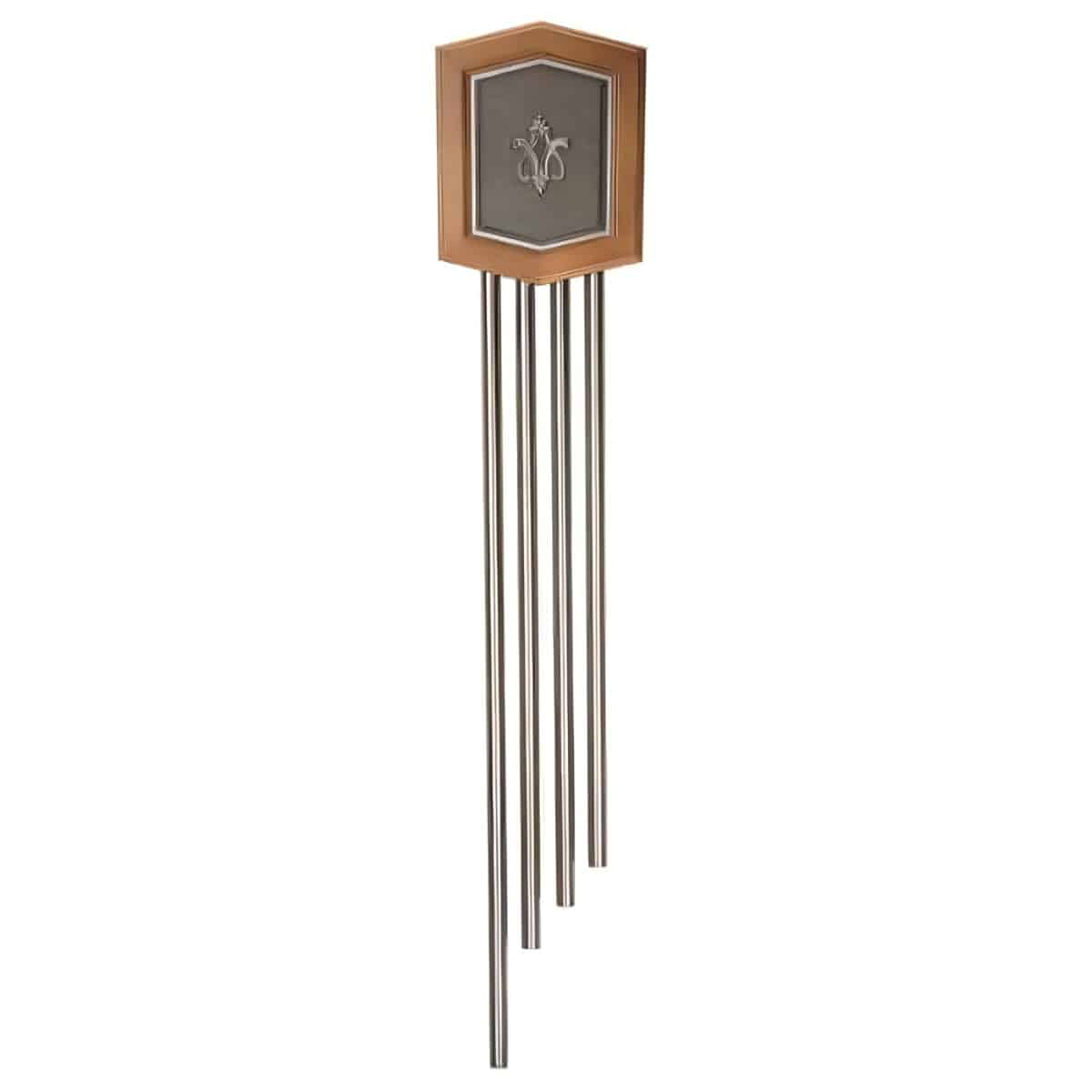

C4-PW Craftmade Four Long Tubes Wired Door Chime in Pewter

(2 customer reviews)
$300.95

When you need a large, decorative wired doorbell, look no further than the C4-PW chime by Craftmade.  This chime features real brass hanging tubes, a rosewood cabinet, and a gorgeous pewter medallion inlay.  One of our only wired chimes that plays a 4 note or 8 note Westminster chime.

Out of stock

SKU: c4-pw
Category:

Description

You would be hard-pressed to find a more elegant, decorative, better-sounding door chime than this one by Craftmade.  Set in a real rosewood cabinet, the hammered traditional pewter medallion inset adds elegance and sophistication that only a chime-like this can boast.  As if that weren’t enough, the long hanging brass tubes are over 5 feet long.

This doorbell plays either the four-note or 8-note Westminster chime for the front door and a single note for a second or third door.

Please note: We recommend a 16V, 30VA doorbell transformer for this product.  The T1630 is the transformer that should be used with this product.  ** The user manual states the chime has volume control — it does not.

Listen to Craftmade Doorbell Sounds
  • 8 or 4-note Westminster chime for front door
  • One note tone for the second and third door
  • 16V transformer required
  • Requires 18-gauge doorbell wire for all wiring connections (chime to a transformer, transformer to push button)
  • Finish – pewter
  • Cabinet – Rosewood
  • Dimensions:
    • 10.75” Width
    • 56.75” Length

Additional information

Weight 10 lbs
Dimensions 4.38 × 10.75 × 20 in
Chime Hanging Position

Country Of Origin

Product Dimensions

Wired Doorbell Features

Condition

Finish

Brand

Warranty

Sound Notes

,

Complete Kit

2 reviews for C4-PW Craftmade Four Long Tubes Wired Door Chime in Pewter

  1. Cory Freake –

    Does the sound actually transfer though the brass tubes? or are they only decorative? Thanks

  2. 1800Doorbell –

    Yes, the sound transfers through the tubes.

  3. Elizabeth Winston –

    I have the doorbell installed but the cover for the mechanics is missing can I get a replacement cover from you?

  4. Guest Shopper –

    Does the sound come from the tubes or are the tubes simply decorative?

  5. 1800Doorbell –

    Good morning. The chime sound resonates from the brass tubes.

  6. Leona –

    Will this work with a video doorbell like a Ring doorbell?

  7. Tim Mack –

    Does the top of the doorbell light up?

  8. 1800Doorbell –

    Good morning, the C4-PW chime does not light up. Thank you,
    Customer Support Team

  9. C –

    Is the sound generated electronically?

    Or are there actual mechanical strikers that make contact with the tubes to make them resonate.

    We have a 1980s Nutone in our current house with actual strikers but are building a new home in another state.

  10. Suzanne Plourde –

    Are the pipes actually used to make the sound

  11. 1800Doorbell –

    Good morning. Yes, there is a mechanism that hits the tubes once the chime is activated. Thank you,
    Customer Support Team
    1800Doorbell

  12. E –

    Hi – I just installed a Maxdot Doorbell Transformer Compatible with Ring Video Doorbell Pro <>
    Is the C4-PW Decorative 4 Long Tubes Wired Door Chime in Pewter finish by Craftmade compatible with Ring Video Doorbell Pro using this type of upgraded transformer? It looks like a great Door Chime to have but it is not yet on their list of compatibility?
    Are there any other options you have in a tube chime that work with a upgraded transformer mentioned above and a Ring Video Doorbell Pro?
    THANKS!

  13. David Myers –

    Will this, in conjunction with the T1630 transformer, work with the nest doorbell which requires: “16V AC–24V AC; requires a 10VA transformer “?

  14. Scott Meyers –

    I’m looking to replace my old style Rittenhouse 4 note Westminster DB, similar to this one. Mine has the short tubes. Do you have an option for this unit of switching long for short tubes?

    Thanks!

  15. Edward Olinger –

    Excellent chime. Worked as expected

  16. Customer –

    Are the hanging tubes brass

  17. How is the doorbell word –

    I need to know how to wear up this doorbell John eight note note Westminster time

  18. Matthew Whritenour –

    Is there room for the transformer under the cover?

  19. Brent –

    Which screw on doorbell is for transformer

  20. Craig Skold –

    My wife and I purchased a house in Michigan last summer and it has a similar door chime. Previous owners used a video doorbell, so the chime was disconnected. Is it possible for you to send the wiring diagram for this chime? If I can figure out the wiring in the house I will need your transformer. Thanks

  21. David Best –

    Is the C4-PW doorbell compatible with lighted pushbuttons?

  22. David Best –

    Do you know where I can get a replacement circuit board for the C4-PW doorbell?

  23. 1800Doorbell –

    Good afternoon. Unfortunately, we do not carry the parts for the C4-PW but you can try contacting the manufacturer, Craftmade. Craftmade can be reached at 1-800-486-4892. Thank you,
    Customer Support Team
    1800Doorbell

  24. Edward Picardi –

    Are the chimes real or electronic simulated sounds?
    Any compatibility problems with Blink door button?

  25. 1800Doorbell –

    Good morning. The C4-PW is a mechanical chime, not electronic but unfortunately, it is not compatible with any type of video doorbell. Please let us know if you have any other questions. Thank you,
    Customer Support Team
    1800Doorbell

  26. John F Martin Jr –

    Can you get the product with brass tubes?

  27. 1800Doorbell –

    Good afternoon. The C4-PW and CA4-RC come with brass tubes in a pewter and renaissance crackle finish, these are the only two finishes available. We also no longer stock these two chimes. Thank you,
    Customer Support Team
    1800Doorbell

  28. Edward Olinger –
