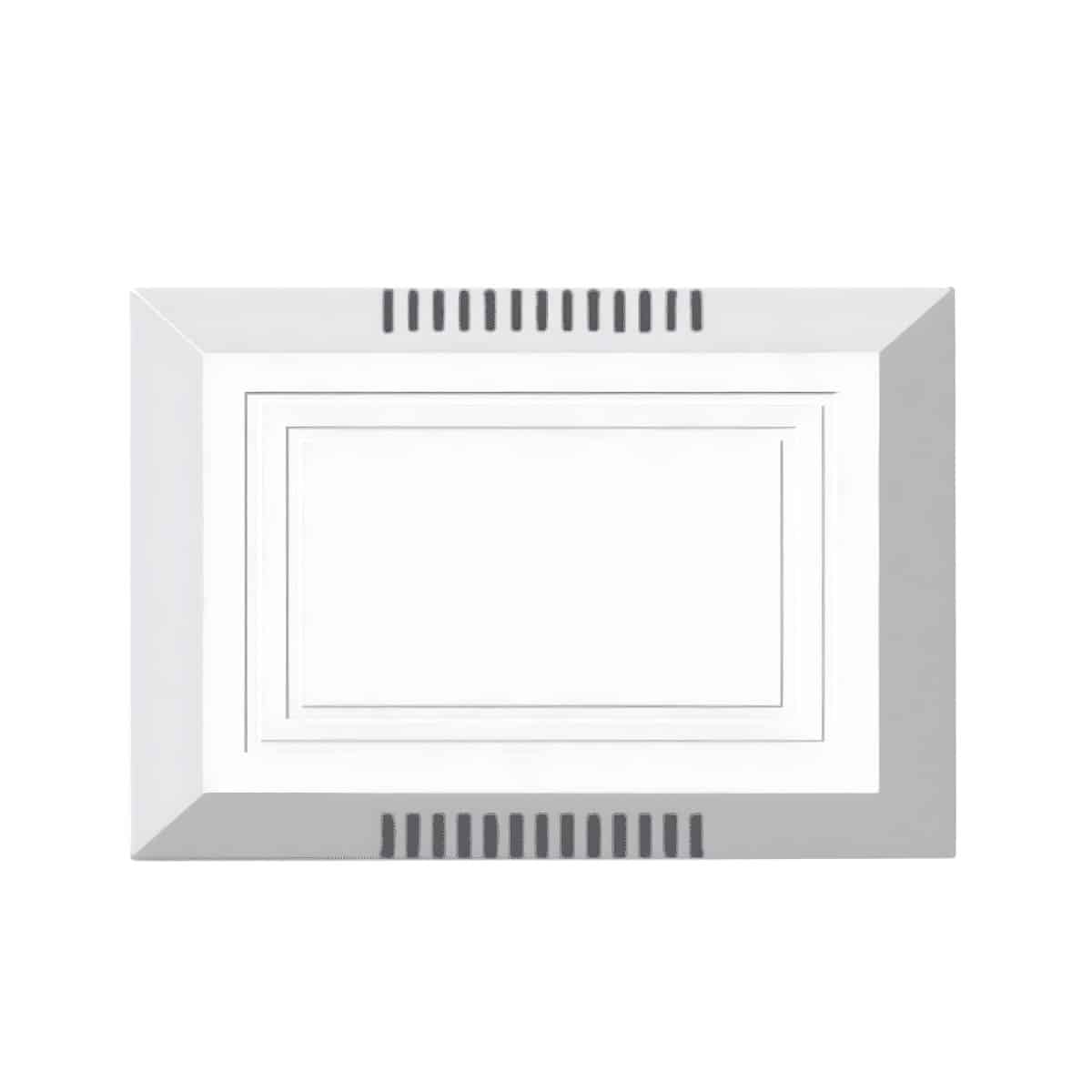

C102-MECH Doorbell With White Cover

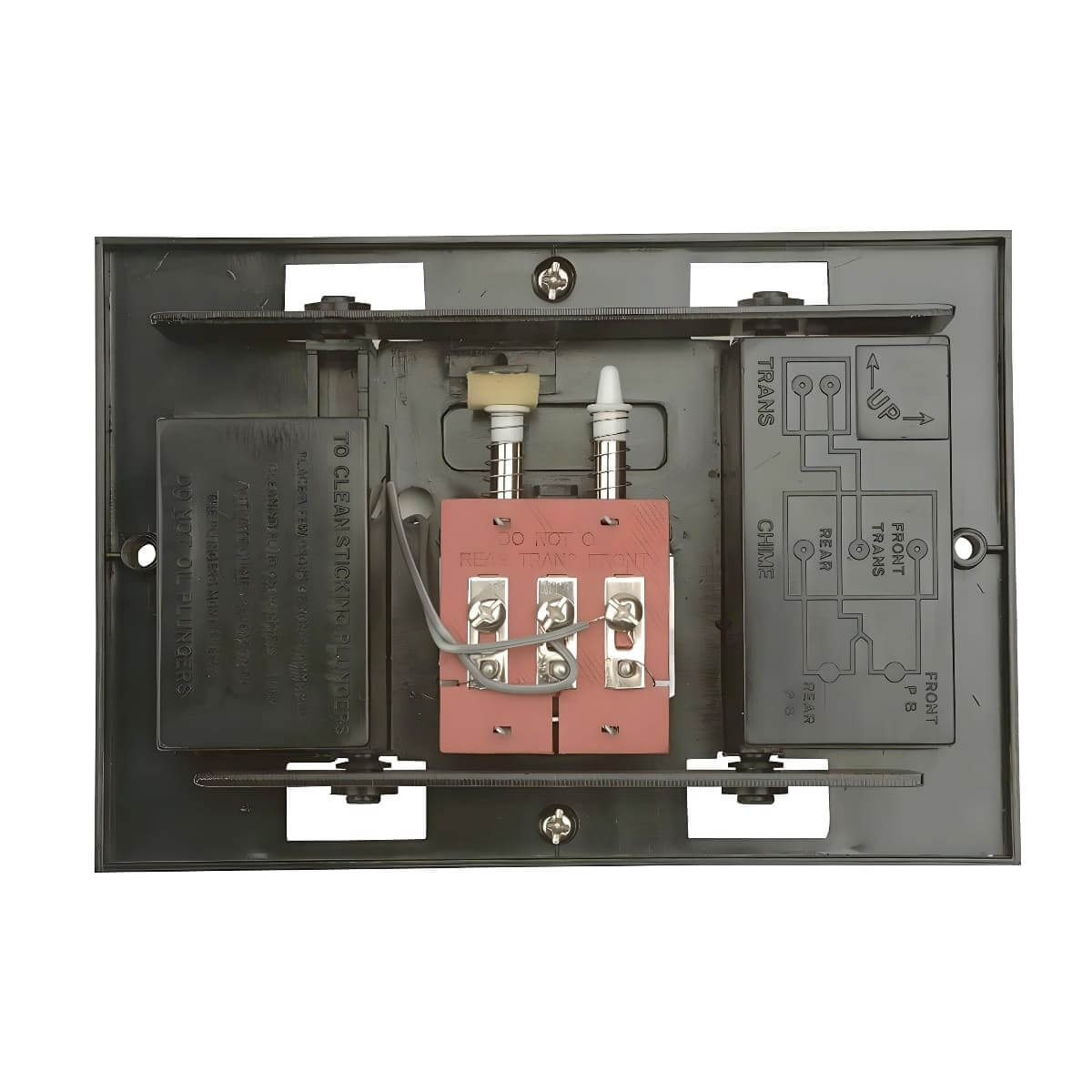

CH102-MECH Wired Doorbell Mechanics

Craftmade C102-MECH Wired Doorbell Chime with White Cover

(57 customer reviews)
$22.95

The Craftmade C102-MECH wired doorbell chime delivers a classic “Ding Dong” chime sound throughout your home. This standard-size replacement produces a traditional “ding-dong” for the front door and a single “ding” for the second door. It includes an attractive white cover, which makes it ideal for enhancing most home decor.

In stock

SKU: C102-MECH
Category:

Description

Standard Wired Doorbell Chime

The C102-MECH doorbell chime offers straightforward functionality for your home’s entrance alert system. This standard-size unit works with 16V wired doorbell transformers, providing reliable operation and familiar tones that clearly announce visitors at your door.

Quality Construction

Craftmade’s C102-MECH maintains the company’s reputation for quality doorbell components. The chime produces distinct sounds: a two-note “ding-dong” sequence for your main entrance and a single “ding” tone for secondary doors. Each tone resonates clearly through the included white cover, complementing your home’s decor.

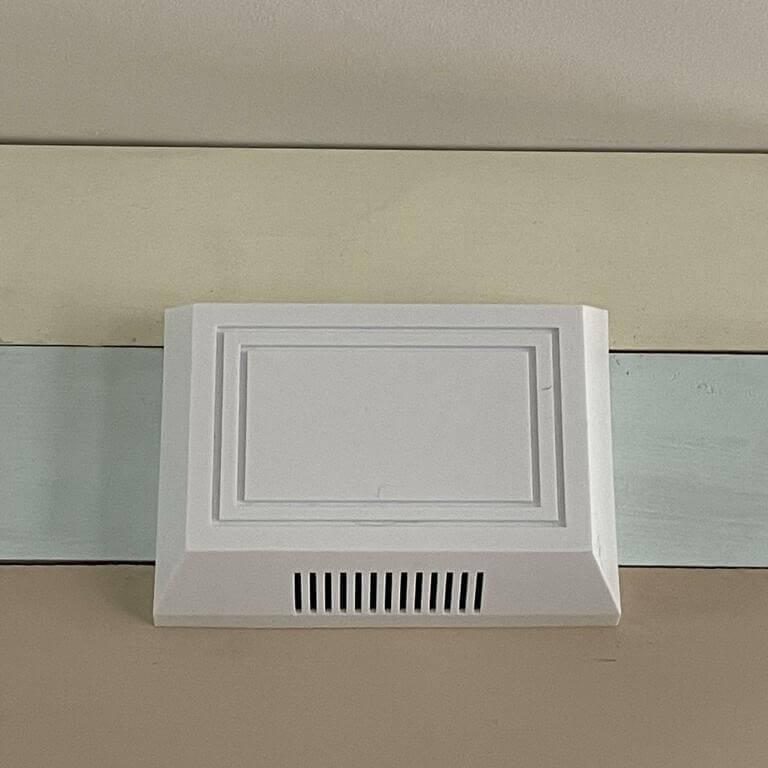

The CH102-MECH Wired Doorbell Installed on a Wall

C102-MECH Installed on Wall

Technical Specifications

  • Dimensions: 7″L x 4.75″W x 2.25″D
  • Voltage: Compatible with 16V systems
  • Chime Sounds: Two-note and single-note options
  • Cover: White matte finish included
  • Installation: Direct replacement design
  • Warranty: 1-year manufacturer coverage

C102-MECH Product Features

  • Standard doorbell chime unit
  • Two-tone front door sound
  • Single-tone second door alert
  • White cover with matte finish
  • Compatible with 16V transformers
  • Simple replacement installation
  • Manufacturer warranty included

Ready to restore your doorbell’s function? Order your C102-MECH doorbell chime now.

Additional information

Weight 2 lbs
Dimensions 2.25 × 7 × 5 in
Brand

Chime Hanging Position

Complete Kit

Condition

Country Of Origin

Product Dimensions

Sound Notes

Warranty

Finish

57 reviews for Craftmade C102-MECH Wired Doorbell Chime with White Cover

  1. Julian Selmes –

    Used it to put a new striker in an old door bell. Good descriprion and Fast Dispatch. Ill buy here again!

  2. Jim Clarke –

    Awesome need another.

  3. Bill Wilson –

    C102-MECH Mech Wired Door Chime Inner Electronics Replacement

  4. Claus Stephan –

    Exactly as described.

  5. Richard W Graves Jr –

    This chime was just what I needed to solve my doorbell inop problem.

  6. John –

    Old nutone wired chime humming. Looks almost exactly like this one. Do u think this is all I need to replace?

  7. Ang –

    Finally found the same brand replacement to the chime I already had. It’s wonderful to have a working doorbell again.

  8. Peggy Sorensen –

    Fast shipping! Works great!

  9. Just curious –

    Is this a complete unit with chimes & cover or just the innerds?

  10. Walter –

    Can you use any 16 volt transformer as in 30 amp that’s required to use ring video pro doorbells

  11. ANDREA BOLAN –

    I really needed just the electromagnet from this chime assembly. When the item arrived I realized it wasn’t just a chime assembly but a ready to hang doorbell with an enclosure and everything. It’s not the most attractive enclosure, but the price is very good.

  12. 1800Doorbell –

    Here’s a 16V 30VA transformer: https://secure.1800doorbell.com/t1630-16v-30w-transformer.htm

  13. Peter Hamilton –

    It appears that the rear doorbell striker is blocked by a small piece of foam and a piece of plastic in front of the chime. Front doorbell works fine, but the back one does not chime because of this block. Advice?

  14. charlie poole –

    C102-MECH Wired Door Chime Electronics Replacement Part

  15. SK –

    Ordered this as a replacement. This model works very well with the Google Nest doorbell camera if you use a loose fitting cover.

  16. Doug –

    Quick service and everything as promised.

  17. BettyAnn Lawrence –

    I found the electronic part for a front and back door chime at 1800Doorbell. It was exactly what I needed. Quick delivery too!

  18. Owen Moody –

    Good product and service. Easy to pick the right replacement! Now my door bell is working, again! I

  19. Anonymous –

    This replaced the inner working of one of your doorbells I previously had. The plunger seized and I could not get it to operate smoothly again. The exterior of this doorbell unit is a cheap plastic that doesn’t go with our home. I swapped out the unit and wall mount and jury rigged a connector to reinstall the original cover. This doorbell uses a shorter chime so the ring is slightly higher pitched and sounds a little cheaper but our doorbell is only operated once or twice a year so it will do.

  20. Willie Wren –

    Need inter parts for L34 1970 model

  21. Ken Bird –

    Under description lists 8x4x2.25 but additional information lists as 7x5x2.25. Which is correct?

  22. Jason L –

    Easy install, Google Nest compatible, quality product.

  23. IAN Parnisi-Jones –

    Happy with the product and the service provided. Thank you!

  24. G B. –

    I was unsure I could replace the 2 door doorbell, then I found this one. It is an identical replacement and easy to install. Works great!

  25. Rick Latham –

    Love my new chimer, but as it turned out, it was my transformer, not my chime. But, my wife likes the new chimer cover!!! 😁

  26. W.W. Rothmann Co., Inc. –

    Haven’t installed it yet but hoping that it works to my satisfaction.

  27. Vernon Auker –

    It fit and works great.

  28. Kathy . –

    Perfect part. Perfect Customer Service. Good price. Fast shipping.

    Thank you!

  29. Paul Ford –

    My doorbell from Rejuvenation Hardware stopped working after four years. They did not offer replacement parts. 1800 doorbell had the exact replacement. Saved me a lot of $$.!! Thank you

  30. Luciano Suffi –

    replacement doorbell

  31. Gregory E Giles –

    I have a KA 10, I am trying to figure out the specs for the transformer. I am installing a Nest doorbell camera. They ask if the the specs are 16-24 AC, 10VA. Thank you for any help you can give me.

  32. Brian Waterfield –

    The part received was perfect and now
    the doorbell is as good as new! Great service and the quality was as expected.

  33. kevin vu –

    Great product and quick shipment

  34. Frank Rice –

    This item was the perfect replacement for my original doorbell. I received my order in less than a week.

  35. Bernard A McKichan –

    The product was purchased as a replacement for the home’s original doorbell that had developed a consistent buzz. Delivery was prompt and the product arrived in excellent condition. Although there were some complications installing the new item over the footprint of the original, the doorbell works and looks great.

  36. Brett Bouchard –

    Fit perfectly into the prior doorbell slots. Easy to install. Back to waking up the dog when the doorbell rings.

  37. Joe Poidinger –

    It was the right part I needed for my ring doorbell to function properly. Thank you

  38. Stephanie Palacios –

    After installing the Ring Doorbell Pro, a low rattle/knocking noise started coming from the far left box but only at night. Any idea why part is in that box that I need to replace?

  39. Kevin –

    Will this work with a ring doorbell

  40. Daniel Hokens –

    Everything worked out fine

  41. Raymond Suchak –

    Fast service fair pricing

  42. Carl Cadieux –

    I have an old door bell and wondered if it matters if you mount your horizontal or vertically.
    I also just installed a ring transformer before installing the ring pro video door bell and want to make sure the 17v 30va transformer will power this chime kit and the ring pro?

  43. andrea kreiner –

    I received exactly what I wanted at a good price with fast service.

  44. Jacqueline Bonita Malone –

    Will this work with Gazingsure video doorbell 2K wired video doorbell .

  45. Customer –

    I am not getting both tones on my Nutone L-17 (vintage 1966) doorbell consistently now. I was on-line and saw one on Pinterest/e-bay but concerned about its condition if it is actually an un-sold, re-discovered unit. I think yours would be a better choice.

    Here are my questions:
    1) What is mounting hole distance C-C (unit mounted vertically)?
    2) What is exact “H” dimension? (This is critical for my existing Nutone cover; I only have 2-1/8″ here.)
    3) Is there a slot at the rear of the frame at least 1-1/2 inches long to allow a metal tab on my Nutone cover to slide into?
    4) Can I use my existing Nutone 12 VAC transformer instead of yours, that will probably lower the volume by 25%, or are
    there other factors in the electrical/magnetic operation of the plungers that require the 16 VAC requirement?

    Thank you

  46. John Breunissen –

    It work as expected and came with a new cover.A good value

  47. Francisco R Soto –

    this doorbell chime replacement worked with no problems….thank you.

  48. Jeffrey Hall –

    My New Doorbell
    My new doorbell is gordo defordo to the max. Super amazing easy to install. Just confirm which pair of wires supplies 16 volts and which pair of pare of wires comes from the door bell. Do it wrong and it’s still fixable, just don’t wire the doorbell directly to the transformer. Excellent, inexpensive, will last decades, easy install, fast delivery. I suggest you purchase one just to have on hand. I would buy a sprare but there’s no point, I’m old. Don’t even buy green bananas.

  49. Robert –

    Works like a charm, clear instructions for instillation, best of all a great price.

  50. Charles Tolbert –

    The product I needed with fast delivery. Would but again

  51. Duane Barrett –

    Works great, easy installation!!!

  52. Harlow Hahn –

    what is the db of doorbell sound we need a loud one

  53. C Tors –

    Exactly what I wanted. Quick enough turn around. Very happy with my purchase.

  54. Ted Stopa –

    C102-MECH Wired Door Chime Electronics Replacement Part

  55. Customer –

    How to change ring on doorbell?

  56. 1800Doorbell –

    This is a wired doorbell that plays a two-note sound for the front door and a one-note sound for the second. You cannot change the sound on this product.

  57. STEVEN CHIGER –

    super fast delivery part was a perfect fit will use again when need door bell parts. thank you for the fast service…

  58. Customer –

    I need the replacement electronics part that looks just like the one in your picture. The problem is the measurements for my current non functioning part is 6.75″L x 4.75″W x 1.75″D. Do you have other sizes available? Thanks

  59. Bruce Rowe –

    The doorbell I ordered was very reasonably priced. I spoke and worked with an excellent, knowledgeable, and very friendly employee named Merilee (sp?) She answered questions I had. Shipping was prompt also. I would highly recommend 1800 Doorbell!

  60. kelvin liggins –

    C102-MECH Wired Door Chime Electronics Replacement Part

  61. Pete Talamante –

    Well this fit a LB- 14 WH model door bell

  62. s.franklin –

    Shipped fairly quickly and was easy to install as a replacement for chimes that burned out.

  63. Dave –

    Shawn (sp?) was VERY HELPFUL! She got me measurements of an electronic part to see if it would work in my existing doorbell chime. Nice company to do business with! Thank you!!!

  64. Bernard Coyle –

    SHIPPED ON TIME AND WORKS WELL.

  65. Customer –

    Does only be used by 16v or can it be used with my already in 24volt. And, if the hard wiring is same used on “wired “ring” doorbell. Any problems with my 2 questions as far as compatibility?

  66. 1800Doorbell –

    Good morning. The C102-MECH is only compatible with a 16 volt transformer and can not be used with a 24 volt transformer. Unfortunately, we do not carry any chimes that are compatible with 24 volts. Thank you,
    Customer Support Team
    1800Doorbell

  67. CJ@TN –

    I paid just a bit more for the chime and the cover here than just the chime at Home Depot. Great prices and terrific customer service.

  68. Pat –

    Fast delivery.
    Quick and easy install. Doorbell works great!

  69. Judith Wilton –

    C102-MECH Wired Door Chime Matte White Finish

  70. John Haynes –

    Does this product C-102 mech contain the transformer?
    Thank you

  71. 1800Doorbell –

    Good morning. The C102-MECH does not contain the transformer, this is only the chime mechanism and cover. The compatible transformer would be the T1610 or the T1630.
    Thank you,
    Customer Support Team
    1800Doorbell

  72. Cynthia Doolittle –

    Product was as advertised.Worked great.

  73. Mahendra –

    Do you charge for shipping to Dublin OH or shipping is free like Amazon? If you charge for shipping, do you have promotional free shipping with any discount code?

  74. 1800Doorbell –

    Good morning. We charge a flat rate shipping fee of $8. Unfortunately, we do not have any discount codes at this time. Thank you,
    Customer Support Team
    1800Doorbell

  75. Craig –

    Can I buy the cover only. Do you have a part number for just the cover?

  76. 1800Doorbell –

    Good afternoon. We do not sell the chime cover only, all of our chimes come with the chime and mechanism. Thank you,
    Customer Support Team
    1800Doorbell

  77. phillip robenolt (verified owner) –

    Just what I was looking for. Old housing yellowed and look bad after a room repaint. Good service.

  78. Mark Lawson (verified owner) –

    Took 10 minutes, worked perfectly

  79. Thomas Tripp (verified owner) –

    I have a problem I installed Door bell 01/12/2024 used twice and It started to hum wont work what can I do to get replaced C-102 Mech Door Chime White

  80. Michael Eddings (verified owner) –

    It has Not arrived yet

  81. Ron Rosinski –

    Do you carry:
    3-way lamp socket with 3-,terminals
    Thank Ron Ron

  82. 1800Doorbell –

    Hi Ron,

    No we do not.

  83. PHILIP WOJCIK (verified owner) –

    We were in the market for a new doorbell chime to replace the one we had. We had looked at many different styles, and wanted something small yet stylish that would hook up to the rest of the system we already had. This was exactly what we wanted, and it came much faster than the original shipping estimate, which was a huge bonus. Installation took less than 15 minutes and it has been working perfectly.

  84. Ram –

    Will this chime work with 16v 30va transformer?

  85. Barry Hatton –

    Is this chime compatible with a camera doorbell wired to a 16v 10VA transformer?

  86. Emil Gottwald (verified owner) –

    Exact replacement for installed chime that stopped working. Great price and prompt shipping.

  87. Customer –

    What happened when you can’t here the door bell right

  88. Cathy Lanzon –

    What is your return policy?

  89. Is this compatible to ring door bell and Camera –

    Is this compatible to a ring doorbell and Camera

  90. Dennis DuBard –

    I need to replace my door bell cover. D-44255 White. Can I order just the cover?

  91. Customer (verified owner) –

    Is this chime compatible with ring video doorbell plus

  92. Cheryl Pryce (verified owner) –

    It’s the exact type I was looking for and you’re the only place I could find it. The price was very reasonable also.

  93. richard smith (verified owner) –

    Looks good.Sounds good.Great price.

  94. Elmer mann –

    Can the CH102 hard wire door chime be installed both vertically & horizontally?

  95. 1800Doorbell –

    Good morning. Yes, the CH102-MECH can be installed either vertically or horizontally. Please let us know if you have any other questions. Thank you,
    Customer Support Team
    1800Doorbell

  96. Mark Brockway (verified owner) –

    Will this be back in stock or has it been permanently discontinued?

  97. Mark Brockway (verified owner) –

    Will this be back in stock or has it been permanently discontinued?
